Frames

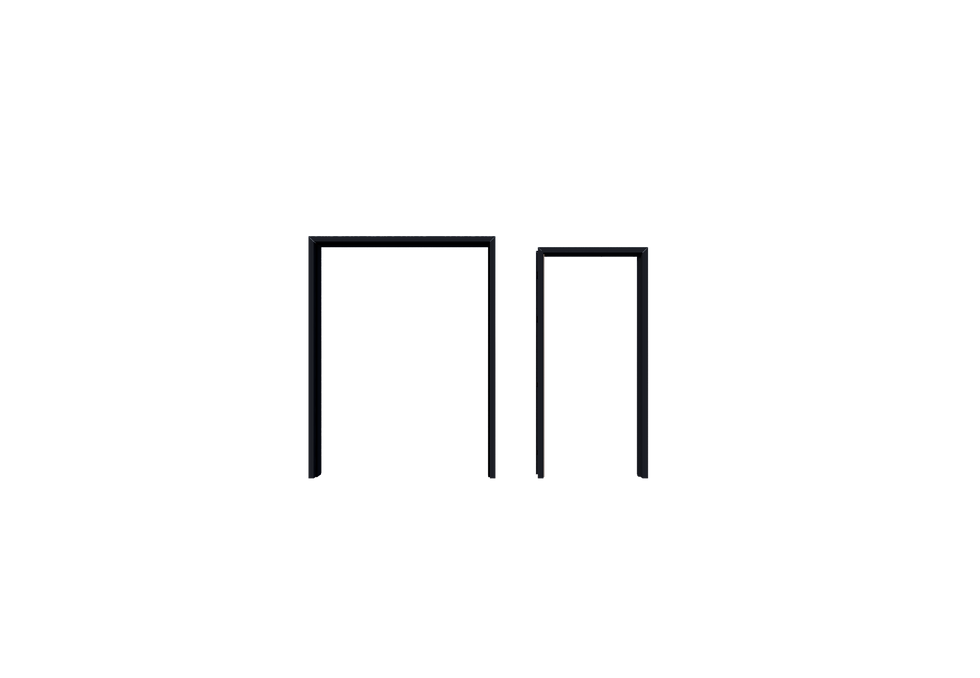

Steel Frames UL Listed For Doors & Windows :
Different metal frame profiles that could be used in the construction of external and internal partitions and glass facades.
Three sided steel frames are made of cold rolled steel sheets (ASTMA 366), or from galvanized steel to (ASTMA526 G90), thickness of steel ranges between 1.4mm- 2mm, the gap between the frame and wall could be filled with concrete or polyurethane.
Specification:
Frames shall be furnished knockdown or welded,ground smooth upon request.
Mitered corners shall have a strong, secure,four tab interlocking system to maintain neat mitered joints and corners. Standard frame to have 1/2" returns; Standard stop heights to be 5/8” high. Soffit dimensions can vary. Frames can be single or double rabbeted. Frames will be supplied with welded on sill anchors.
Face Sheet:
Made of 1.5-1.6 mm thick face sheets of hollow metal construction.
Material:
Galvanized G90 (Z275) steel to be break‐formed to the design specifications required
Finishing:
Powder coating / seamless powder coating:
Certificates:
Non Fire-Rated Hollow Metal Doors
Single Leaf
Single Leaf + Fixed Panels
Double Leaves
One & Half Leaves
Double Leaves + Fixed Panels

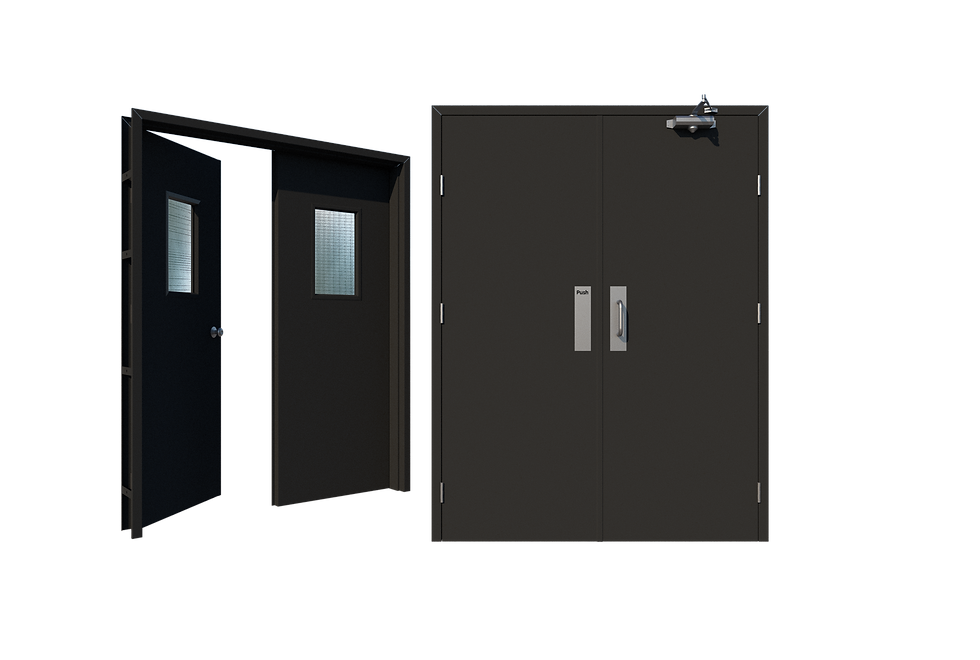

Non-Fire Rated Steel Doors:
Fire-Rated steel doors play a vital role in keeping people safe and minimizing property damage during a fire. Labeled fire doors control the spread of fire and smoke for up to 3 hours. Metal fire doors are an economical alternative to wood fire doors, when more than a 20-minute rating is required. Steel is the sole door material to deliver a 3-hour fire rating.
The door is an authorized WHI fire-labeled shop, enabling us to modify, re-certify and label fire-rated doors and frames. Our facility undergoes routine inspections to verify that modifications are done in compliance with the requirements of the Intertek specification listings.
Specification:
18 Gauge Cold Rolled or Galvanized Steel.
45 mm Thickness Standard.
12-Gauge Closer Reinforcement.
7-Gauge Hinge Reinforcement - Reversible.
16-Gauge Flush Top Cap - Galvanized.
16-Gauge Inverted Bottom Cap - Galvanized.
WHI / ITS up to 3 hour, Positive Pressure and “S” Smoke included.
Face Sheet:
Made of 1.25 mm thick face sheets of hollow metal construction.
Leaf Material:
Steel door leaf shall be 45mm thick, double skinned galvanized,
commercial grade steel G90 (Z275).
Frame Material:
Galvanized commercial grade steel G90 (Z275) to B.S. 1245 with mitered.
Finishing:
Powder coating / seamless powder coating:

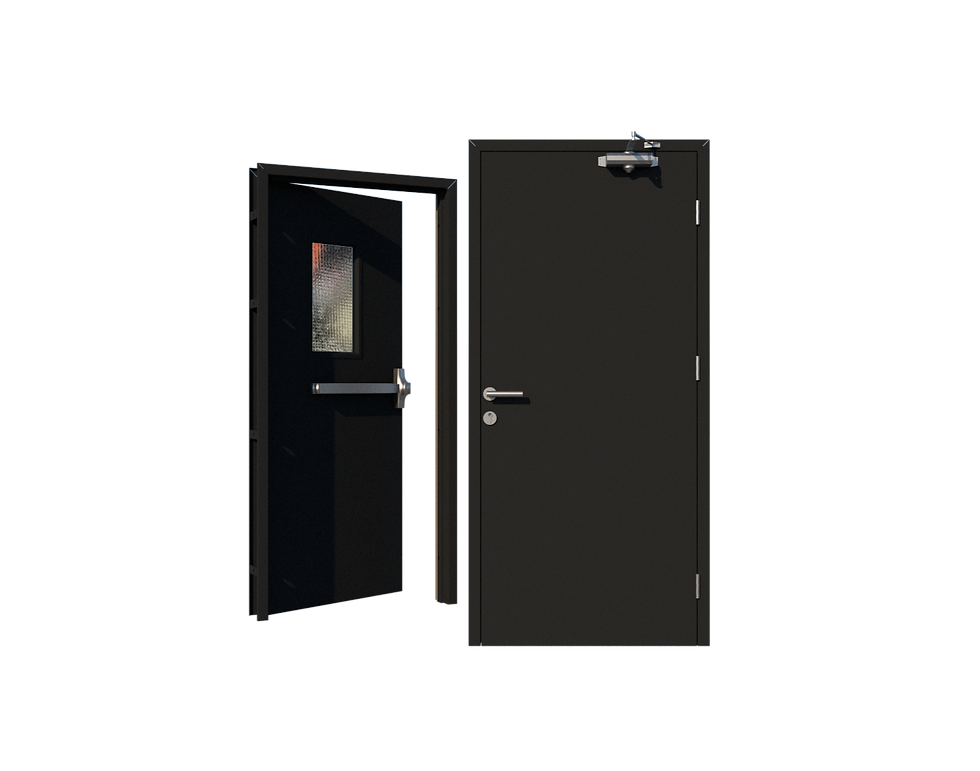

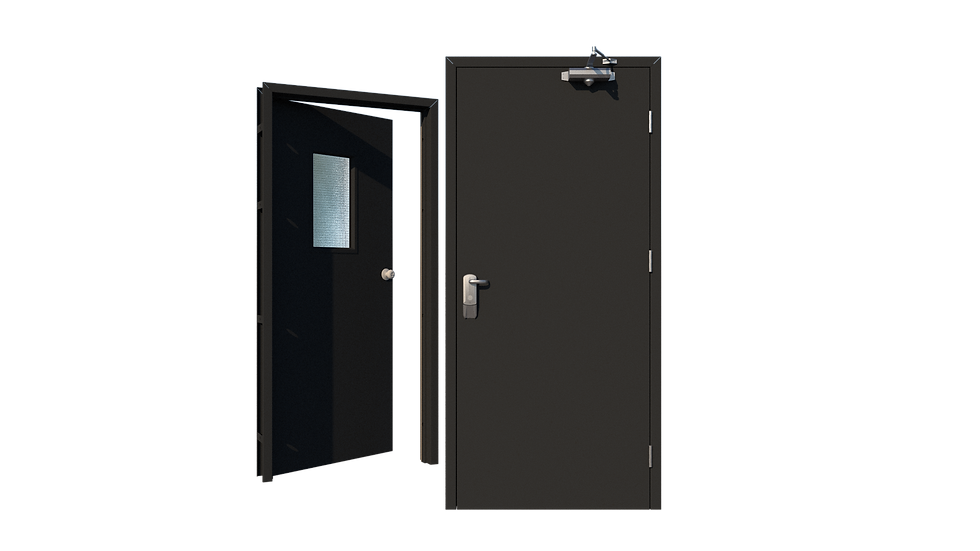

Fire-Rated Hollow Metal Doors
Single Leaf
Single Leaf + Fixed Panels
Double Leaves
One & Half Leaves
Double Leaves + Fixed Panels

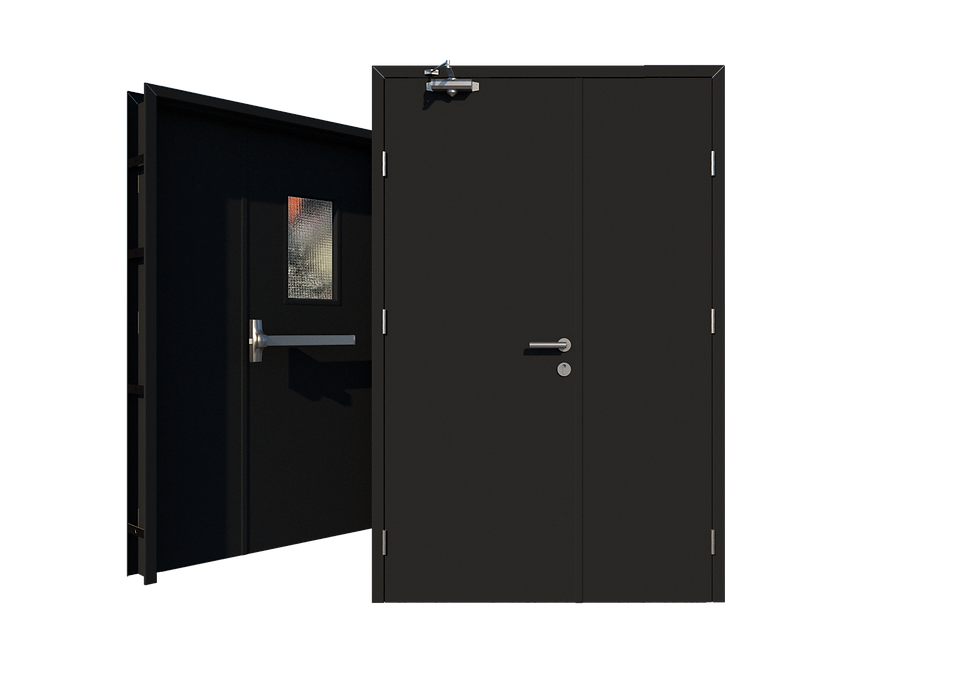

Fire Rated Steel Doors:
Fire-Rated steel doors play a vital role in keeping people safe and minimizing property damage during a fire. Labeled fire doors control the spread of fire and smoke for up to 4 hours. Metal fire doors are an economical alternative to wood fire doors, when more than a 20-minute rating is required. Steel is the sole door material to deliver a 3-hour fire rating.
The door is an authorized WHI fire-labeled shop, enabling us to modify, re-certify and label fire-rated doors and frames. Our facility undergoes routine inspections to verify that modifications are done in compliance with the requirements of the Intertek specification listings.
Specification:
Fire-Rated Hollow Metal Leaf Up To 4 Hours
18 Gauge Cold Rolled or Galvanized Steel.
45 mm Thickness Standard.
12-Gauge Closer Reinforcement.
7-Gauge Hinge Reinforcement - Reversible.
16-Gauge Flush Top Cap - Galvanized.
16-Gauge Inverted Bottom Cap - Galvanized.
WHI / ITS up to 3 hour, Positive Pressure and “S” Smoke included.
Door Edges:
profiles: Square Edge – edge of door which is 90° tothe face.
Beveled Edge – edge of a door which is not at a 90°single to the face of the door.
Face Sheet:
Made of 1.25 mm thick face sheets of hollow metal construction.
Leaf Material:
Steel door leaf shall be 45mm thick, double skinned galvanized,
commercial grade steel G90 (Z275).
Frame Material:
Galvanized commercial grade steel G90 (Z275) to B.S. 1245 with mitered.
Finishing:
Powder coating / seamless powder coating
Certificates:

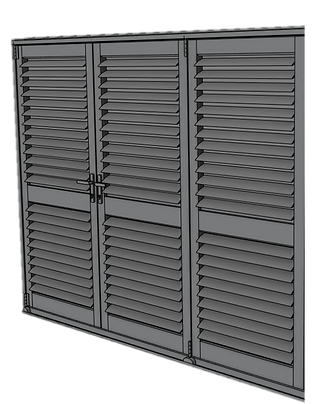

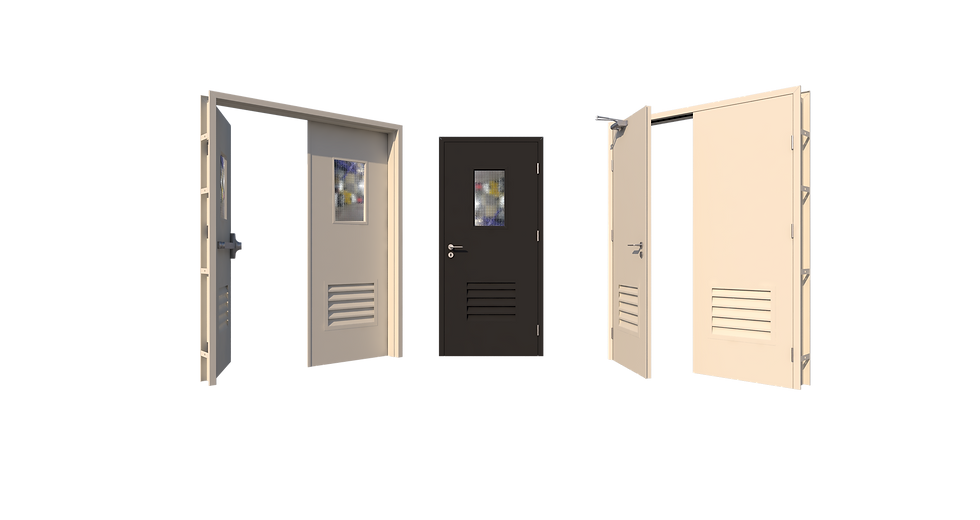

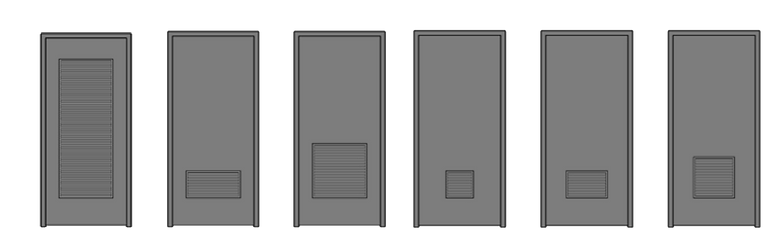

Louver Doors
introducing our innovative Louver Door – the perfect blend of efficiency and style for modern ventilation. Designed using premium materials and advanced technology, this door guarantees exceptional performance and durability.
Featuring a sleek, contemporary design that complements any interior, our Louver Door meets the highest industry standards for quality and reliability. Its carefully engineered louvers maximize airflow while ensuring privacy, making it ideal for spaces such as laundry rooms, utility closets, and mechanical rooms.
Available in various sizes and finishes, our Louver Door is not only easy to install but also fully customizable to fit any opening. Rigorously tested to endure even the toughest conditions, it promises optimal performance for years to come.
For a high-quality, efficient, and stylish ventilation solution, trust our company to deliver the best on the market.
Non Fire Rated Louver Door
Specification:
18 Gauge Cold Rolled or Galvanized Steel.
45 mm Thickness Standard.
12-Gauge Closer Reinforcement.
7-Gauge Hinge Reinforcement - Reversible.
16-Gauge Flush Top Cap - Galvanized.
16-Gauge Inverted Bottom Cap - Galvanized.
WHI / ITS up to 3 hour, Positive Pressure and “S” Smoke included (N/A For Full Louver Doors)
Face Sheet:
Made of 1.25 mm thick face sheets of hollow metal construction.
Leaf Material:
Steel door leaf shall be 45mm thick, double skinned galvanized,
commercial grade steel G90 (Z275).
Frame Material:
Galvanized commercial grade steel G90 (Z275) to B.S. 1245 with mitered.

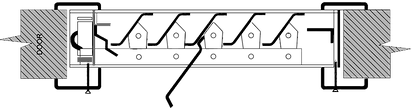

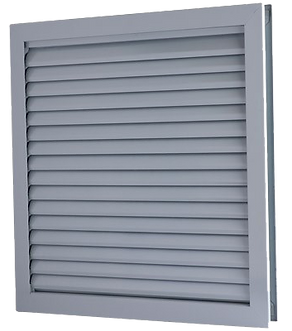

Fusible Link Louver - Fire-Rated
Specification:
18 Gauge Cold Rolled or Galvanized Steel.
45 mm Thickness Standard.
12-Gauge Closer Reinforcement.
7-Gauge Hinge Reinforcement - Reversible.
16-Gauge Flush Top Cap - Galvanized.
16-Gauge Inverted Bottom Cap - Galvanized.
WHI / ITS up to 3 hour, Positive Pressure and “S” Smoke included (N/A For Full Louver Doors)
Face Sheet:
Made of 1.25 mm thick face sheets of hollow metal construction.
Leaf Material:
Steel door leaf shall be 45mm thick, double skinned galvanized,
commercial grade steel G90 (Z275).
Frame Material:
Galvanized commercial grade steel G90 (Z275) to B.S. 1245 with mitered.
Frame: High quality galvanized Iron Sheet of 1.6mm thickness.
Blades: Single skin roll formed from high quality steel sheet of thickness 16 gauge.
Actuator: Fast acting, two position Honeywell actuator
TRD: Belimo make TRD,165° F temperature rating.
Jamb Seal: Stainless Steel
Motorized Fire Damper
Finishing:
Powder coating / seamless powder coating:
Certificates:

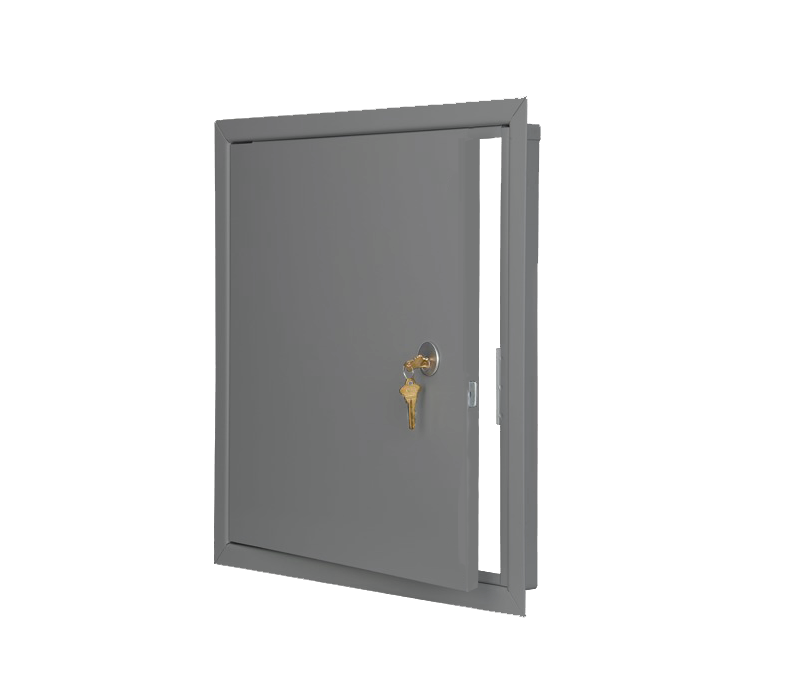

The fire-rated access door is designed for both wall and ceiling installations, offering high performance in fire safety and thermal insulation. UL-listed and built to meet international standards, it effectively resists the spread of fire and smoke, making it a reliable choice for commercial, residential, and industrial applications.
Its insulated core minimises heat transfer during fire exposure, while the durable steel construction ensures structural integrity. The door features a clean, flush finish with concealed hinges and a secure latch, providing easy access for maintenance without compromising safety. Available in multiple sizes and finishes, our access door combines safety, durability, and discreet design.

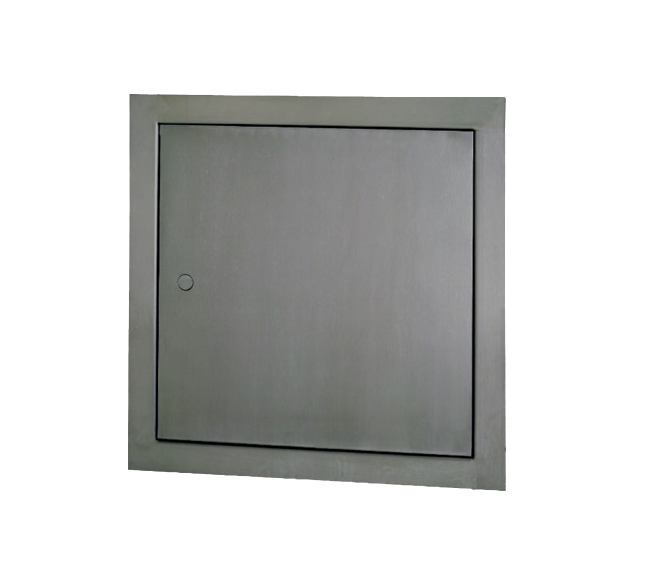

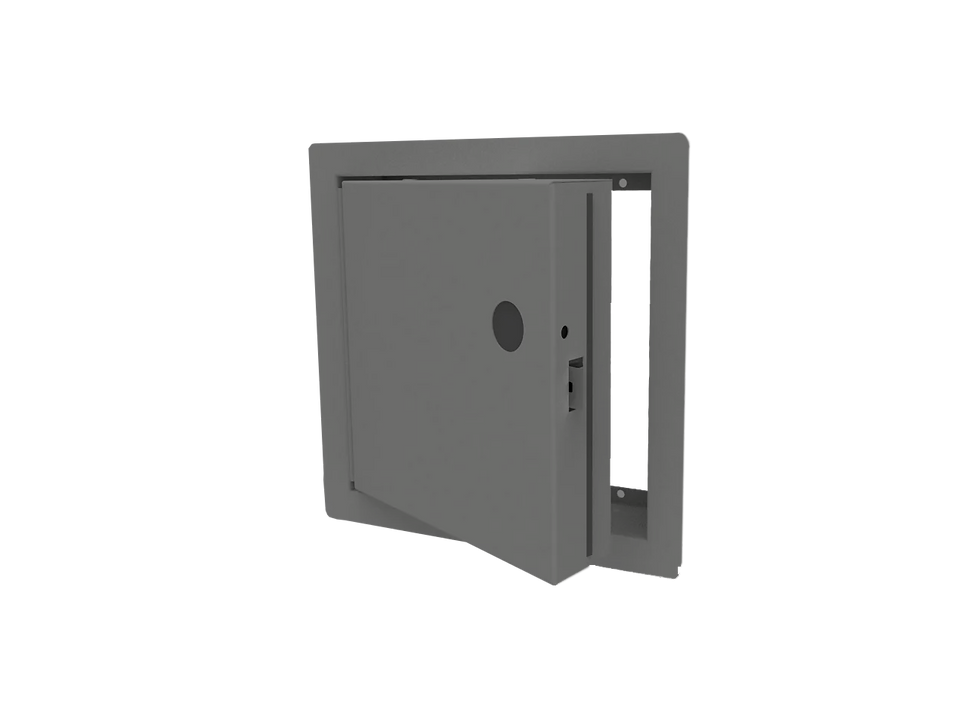

Access Panels
Specification:
18 Gauge Cold Rolled or Galvanized Steel.
45 mm Thickness Standard.
12-Gauge Closer Reinforcement.
7-Gauge Hinge Reinforcement - Reversible.
16-Gauge Flush Top Cap - Galvanized.
16-Gauge Inverted Bottom Cap - Galvanized.
WHI / ITS up to 3 hour, Positive Pressure and “S” Smoke included.
Door Edges:
profiles: Square Edge – edge of door which is 90° tothe face.
Beveled Edge – edge of a door which is not at a 90°single to the face of the door.
Face Sheet:
Made of 1.25 mm thick face sheets of hollow metal construction.
Leaf Material:
Steel door leaf shall be 45mm thick, double skinned galvanized,
commercial grade steel G90 (Z275).
Frame Material:
Galvanized commercial grade steel G90 (Z275) to B.S. 1245 with mitered.
Finishing:
Powder coating / seamless powder coating
Certificates:
The fire-rated access door is designed for both wall and ceiling installations, offering high performance in fire safety and thermal insulation. UL-listed and built to meet international standards, it effectively resists the spread of fire and smoke, making it a reliable choice for commercial, residential, and industrial applications.
Its insulated core minimises heat transfer during fire exposure, while the durable steel construction ensures structural integrity. The door features a clean, flush finish with concealed hinges and a secure latch, providing easy access for maintenance without compromising safety. Available in multiple sizes and finishes, our access door combines safety, durability, and discreet design.
Access Panels
Specification:
18 Gauge Cold Rolled or Galvanized Steel.
45 mm Thickness Standard.
12-Gauge Closer Reinforcement.
7-Gauge Hinge Reinforcement - Reversible.
16-Gauge Flush Top Cap - Galvanized.
16-Gauge Inverted Bottom Cap - Galvanized.
WHI / ITS up to 3 hour, Positive Pressure and “S” Smoke included.
Door Edges:
profiles: Square Edge – edge of door which is 90° tothe face.
Beveled Edge – edge of a door which is not at a 90°single to the face of the door.
Face Sheet:
Made of 1.25 mm thick face sheets of hollow metal construction.
Leaf Material:
Steel door leaf shall be 45mm thick, double skinned galvanized,
commercial grade steel G90 (Z275).
Frame Material:
Galvanized commercial grade steel G90 (Z275) to B.S. 1245 with mitered.
Finishing:
Powder coating / seamless powder coating
Certificates:

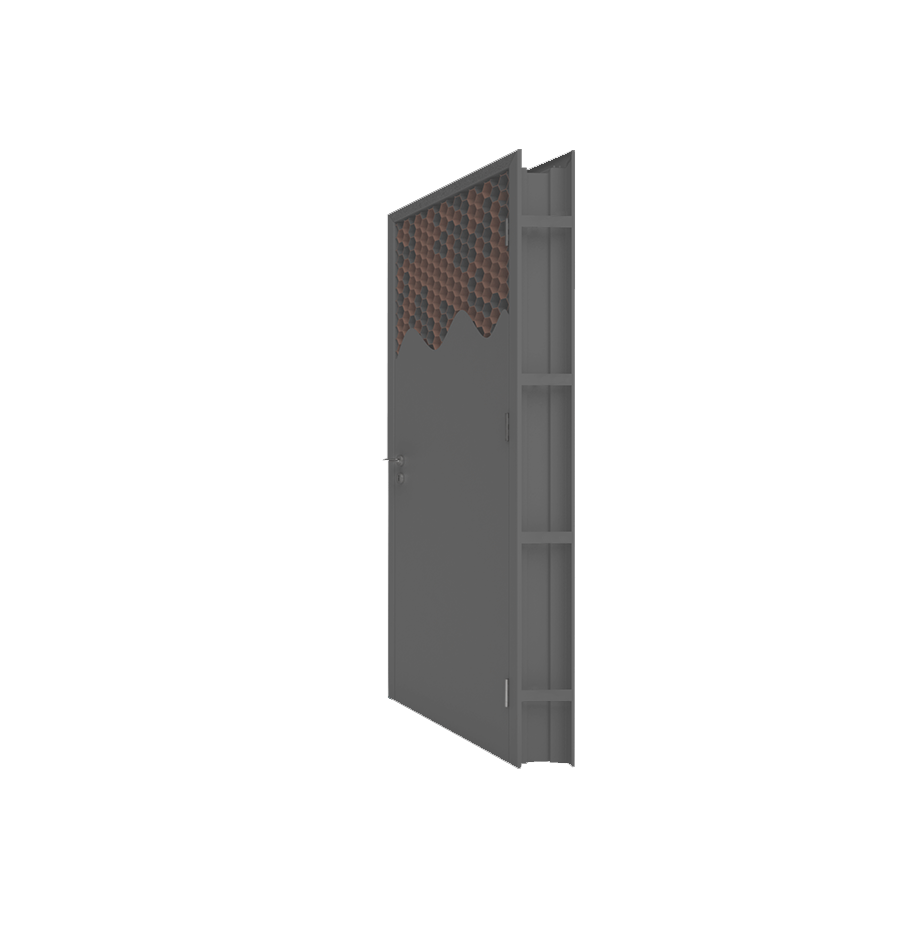

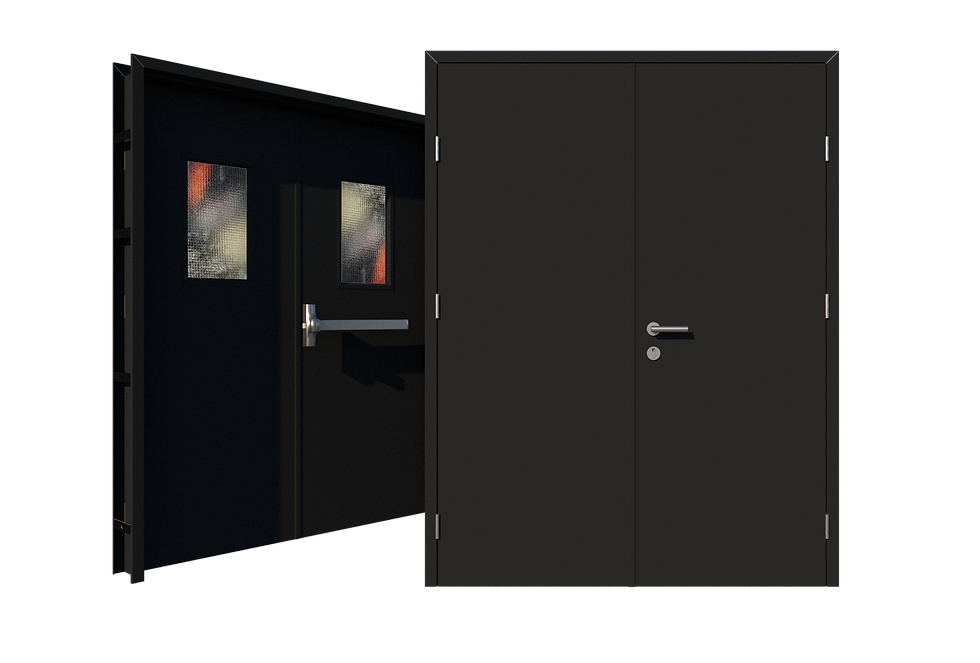

Acoustic Doors
Single Leaf
Single Leaf + Fixed Panels
Double Leaves
One & Half Leaves
Double Leaves + Fixed Panels

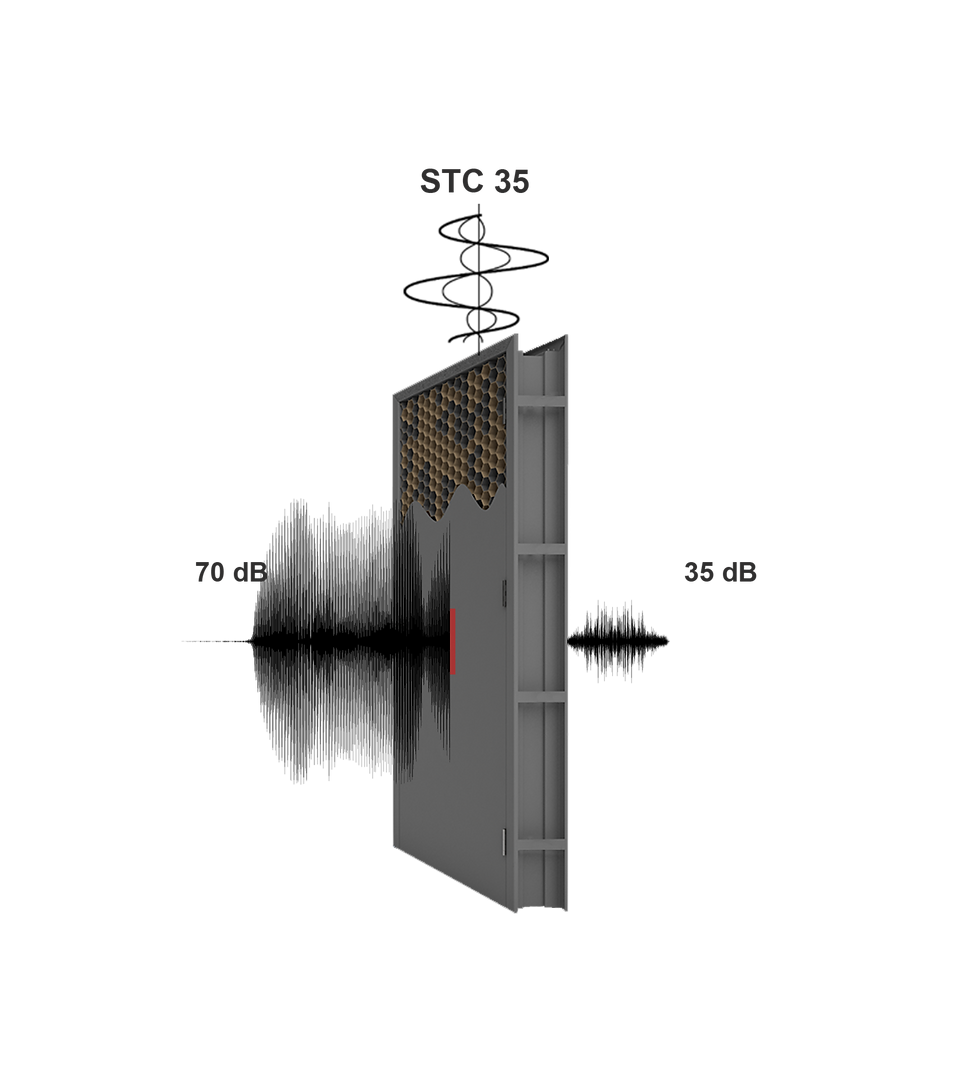

An STC rating roughly equals the decibel (dB) reduction in noise volume in a wall or Doors can provide. For example, if an 70 dB sound on one side of a wall/ doors is reduced to 35 dB on the other side, that partition is said to have an STC of 35.
Specification:
18 Gauge Cold Rolled or Galvanized Steel.
45 mm Thickness Standard.
12-Gauge Closer Reinforcement.
7-Gauge Hinge Reinforcement - Reversible.
16-Gauge Flush Top Cap - Galvanized.
16-Gauge Inverted Bottom Cap - Galvanized.
WHI / ITS up to 3 hour, Positive Pressure and “S” Smoke included.
Sound Ratings & Perception:
An STC rating roughly equals the decibel (dB) reduction in noise volume in a wall or Doors can provide. For example, if an 70dB sound on one side of a wall/ doors is reduced to 35dB on the other side, that partition is said to have an STC of 35.
Door Edges:
profiles: Square Edge – edge of door which is 90° to the face.
Beveled Edge – edge of a door which is not at a 90° single to the face of the door.
Face Sheet:
Made of 1.25 mm thick face sheets of hollow metal construction.
Leaf Material:
Steel door leaf shall be 45mm thick, double skinned galvanized,
commercial grade steel G90 (Z275).
Frame Material:
Galvanized commercial grade steel G90 (Z275) to B.S. 1245 with mitered.
Finishing:
Powder coating / seamless powder coating
Certificates:

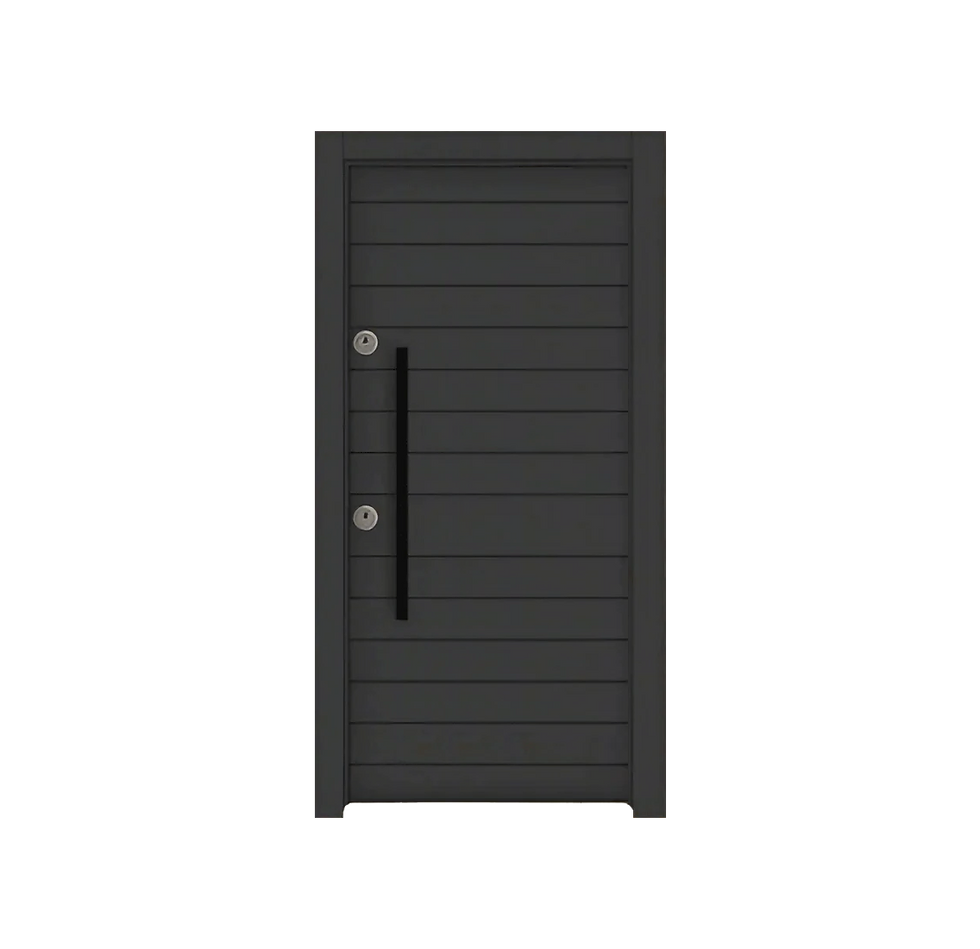

Acoustic Doors
Single Leaf
Single Leaf + Fixed Panels
Specification:
Security classes 3++ and 4+
17 to 19 security points
Minimum 30-minute fire resistance.
Thermal insulation
Sound insulation 33 dB
Suitable for installation in your original steel doorframe
Fast, easy and clean installation
Integrated locking-bar system
Modern surfaces of laminate, veneer, or solid wood
Lock reinforced with metal sheet
Finishing:
Powder coating / seamless powder coating
Certificates:
Anti-Bullet Doors
Single Leaf
Single Leaf + Fixed Panels
Double Leaves
One & Half Leaves
Double Leaves + Fixed Panels
We provide bullet-resistant doors and frames with protection levels ranging from Level 1 (9mm handguns) to Level 8 (7.62mm military assault rifles). All doors are rigorously tested and certified according to UL 752 standards and built in compliance with SDI Level 4 construction requirements. They come standard with either a polystyrene or mineral wool core, making them suitable for both interior and exterior use. These assemblies are ideal for high-security installations such as military and government facilities, utility buildings, cashier stations, currency exchanges, and cellular tower enclosures.
Protection Levels:
-FB4+ (Special Type - 7.62x39mm PS, 124 gr , 710 - 740 m/s)
-FB5
-FB6 (7.62 x 51 NATO)
-FB6+ (Special Type -.30 30-06 SP, 180 gr, 774 - 852 m/s) Sound Ratings & Perception.
Door Edges:
profiles:
-
Square Edge – edge of door which is 90° to the face.
-
Beveled Edge – edge of a door which is not at a 90° angle to the face of the door.
Face Sheet:
Made of 1.5 mm thick face sheets of hollow metal construction.
Leaf Material:
Construction Heavy Duty, FB2+ 16-Gauge Steel Face Sheets leaf 16-Gauge Steel Face Sheets Frame with armored sheet 3.5mm,10mm
Frame Material:
Galvanized commercial grade steel G90 to B.S. 1245 with mitered.
Finishing:
Powder coating / seamless powder coating
Certificates:
Weight:
100*210cm=250kg
GMP & Clean-room Doors
